Yanmar 6LY3-ETP 480hp TWIN DISC GEARS

FOR SALE Yanmar 6LY3-ETP 480hp TWIN DISC GEARS. This engine very clean, excellent condition, great runs and low hours Around 450 hours on them.

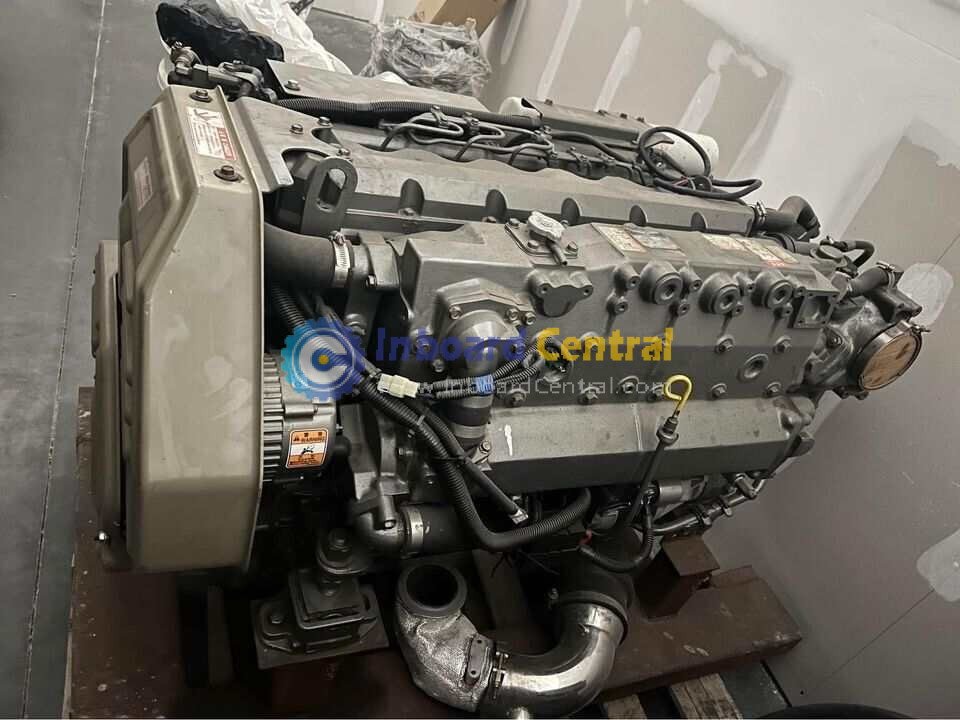

The Yanmar 6LY3-ETP is a 6-cylinder, electronic-controlled marine diesel engine producing 480 hp (353 kW}) at 3300 rpm. When configured with Twin Disc marine gears, operators typically pair this engine with the Twin Disc MG-5061A or MG-5061 transmissions to handle the engine’s high torque and provide smooth shifting.

Engine Specifications

• Rated Output : 353 kW/480 mhp @ 3300 rpm
• Displacement : 5.813 L
• Bore x Stroke : 106 mm X 110 mm (approx.4.17 in X 4.33 in)
• Aspiration : Turbocharged with seawater-cooled intercooler
• Dry Weight : 640 kg/1411 lbs
• Controls : Electronic controls (Unlimited) or Hybrid/Classic
• Emissions Compliance : EPA Tier 2, IMO Tier 2

Common Twin Disc Gear Pairings

• For repower or new builds, the 480 hp Yanmar is often matched with these Twin Disc models:

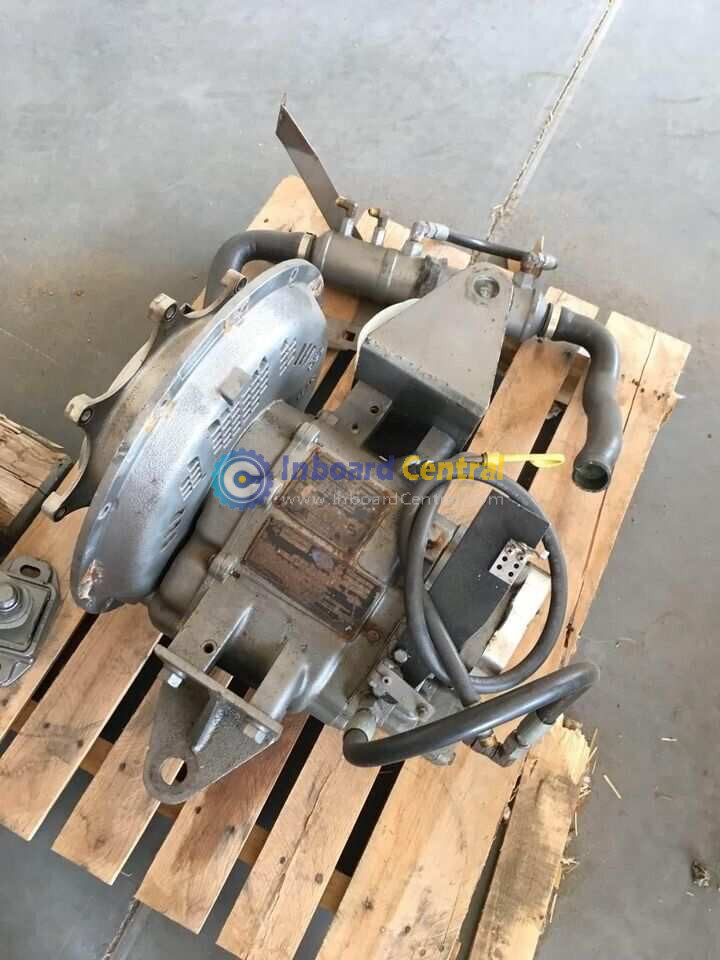

• Twin Disc MG-5061A: Down-angle (8°) marine gear ideal for direct-drive installations.
• Twin Disc MG-5061: Coaxial (down-angle 0°) drop-center transmission.

NOTE :

Both turbos are freshly rebuilt
New impellers
New fuel primes
New engine side harnesses
