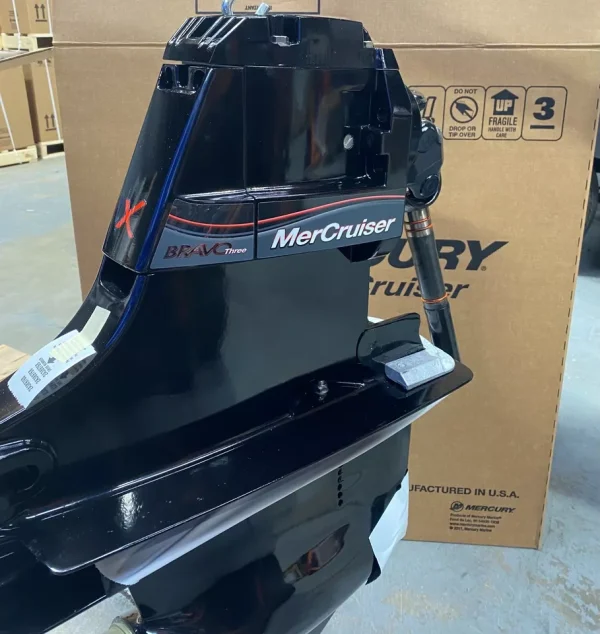

Brand New OEM MerCruiser Bravo 3 X Outdrive 2.20 Ratio, 100% real, current model, directly from Mercury in the box. Full Factory Warranty
Maximum Power Capacity 450 HP (332 KW)
Lower Unit Design Large Rudder Area Twin Prop
Max. Propeller Diameter 2 X 16″
Water Inlet Location Strut
Clutch Type High-Strength Smooth-Shift Cone Clutch with F-N-R
Available Gear Ratios 1.81, 2.00, 2.20:1
Counter-Rotation Twin Prop
Upper Unit Gear Set Precision Shimmed Assembly with Near-Net Forged Helical Gears, Steel Chimney Bearing Supports, Reinforced Ribbed Top Cap
Lower Unit Gear Set Precision Shimmed Assembly Forged Bevel Gears with Twin Counter Rotating Propshafts for Bravo Three
Propshaft Material Heat-Treated Stainless Steel
Standard Exhaust Outlet Low-Restriction Through Transom or Through Propeller
Required Propeller Hub Type None for Bravo Three
Recommended Lubricant Mercury High-Performance Gear Lube
Monitoring System Drive Lube Monitor w/Audio Warning or Engine Guardian®
Corrosion Warranty 3-Year, Limited
Housing Construction XK 360 Low-copper Alloy Machined for Large Bearings
Corrosion Protection Tri-Paint, Anodes & MerCathode® Electronic Corrosion Prevention
Anode Type Ultra-Pure Aluminum Anodes or Magnesium Anode Kit
Speedometer Pick-up Integrated Into Lower Housing, Digital Output Optional
Steering System Single Cylinder Power Steering with Anti-Feedback
Steering Range 56° Range Stop to Stop, Digital Output Optional
U-Joint Type Heavy Duty Permalube® Virtually Maintenance-Free
Power Trim System Twin-Cylinder Hydraulic Featuring Power Trim XD® Kick-up Return
Typical Trim Range -2° to 14°
Trim Limit Switch Adjustable Limit Analog or Digital – Engine Dependant
Trailer Limit 51°
Trim Hinge Pin Design Permanently Lubricated – No Maintenance Required
Hydraulic Trim Lines Stainless Steel Braided Armor
Drive Coupler Greaseable From Inside Boat
Drive Weight 151 lbs. (68 kg)
