Volvo Penta Boat Inboard I/O Motor Package | V6 240 HP Marine Engine

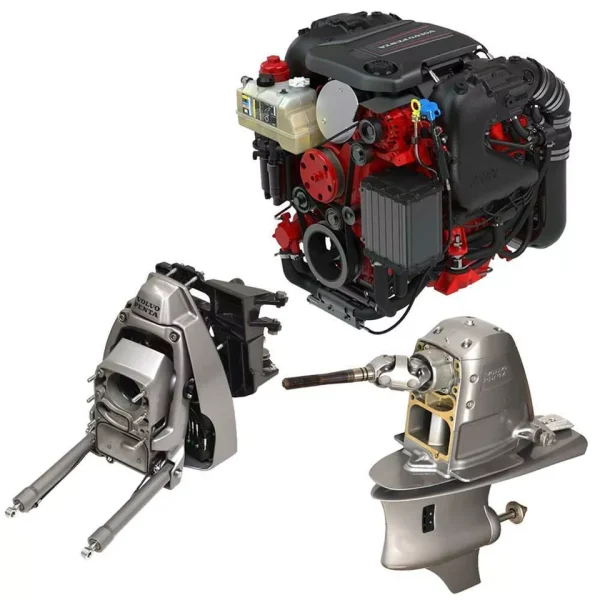

Boat part number 1111481 is a new 3 piece set, 2018 V6 240 HP inboard I/O engine package from Volvo Penta.

This package includes the following:

(1) V6-240-C-M Model V6 Inboard Engine, 240 HP | P/N: 40869767
(1) Type SX-D Outdrive Sterndrive Unit | P/N: 22491350
(1) TSK-C-52 Transom Shield Gimbal | P/N: 22865043

Engine Features:

Aluminum, deep skirt cylinder block with six bolt, powdered metal main caps for extra strength
Hydraulic cam phaser for variable camshaft timing optimizes low end torque and high-end horse power
Pressure lubrication system with heavy duty engine oil cooler and remote oil filter
Paper oil filter element reduces environmental impact of engine service
Cast aluminum structural oil pan
Spark Ignited Direct Injection system with stainless steel returnless fuel rail and high pressure mechanical fuel pump
High pressure direct injection facilitates a higher compression ratio and improved combustion
Vapor separating fuel pump system with two electric pumps, pressure regulator, and water separating fuel filter

Sold as a set as shown in photos.

This is a new, unregistered engine package and does contain a factory warranty. Warranty will not cover cosmetic damage. For the warranty to be activated the units must be installed by an authorized dealer.

Engine Specifications:

Part Manufacturer: Volvo Penta
Part Number: 40869767
Model: V6 240
Model Number: V6-240-C-M
Type: Inboard Engine
Year: 2018
Colors: Red / Black
Horsepower: 240 HP
Engine Type: V6
Full Throttle RPM: 5800
Displacement: 4.3L
Bore x Stroke: 99.6/92 mm
Compression Ratio: 11.0:1
Fuel System: Spark Ignited Direct Injection
Catalytic Converter: Yes
Rating: 5 (Pleasure Craft Applications)
Warranty: Factory Warranty

Outdrive Sterndrive Specifications:

Part Manufacturer: Volvo Penta
Part Number: 22491350
Color: Silver
Finish: Glossy
Ratio: 1.97
Splines: 17 (Engine)

Gimbal Specifications:

Part Manufacturer: Volvo Penta
Part Number: 22865043
Model: TSK-C-52
Color: Silver
Tilt: 52° (Max)
Connections: (1) 5-pin | (1) 2-pin

All sales on this item are final.
