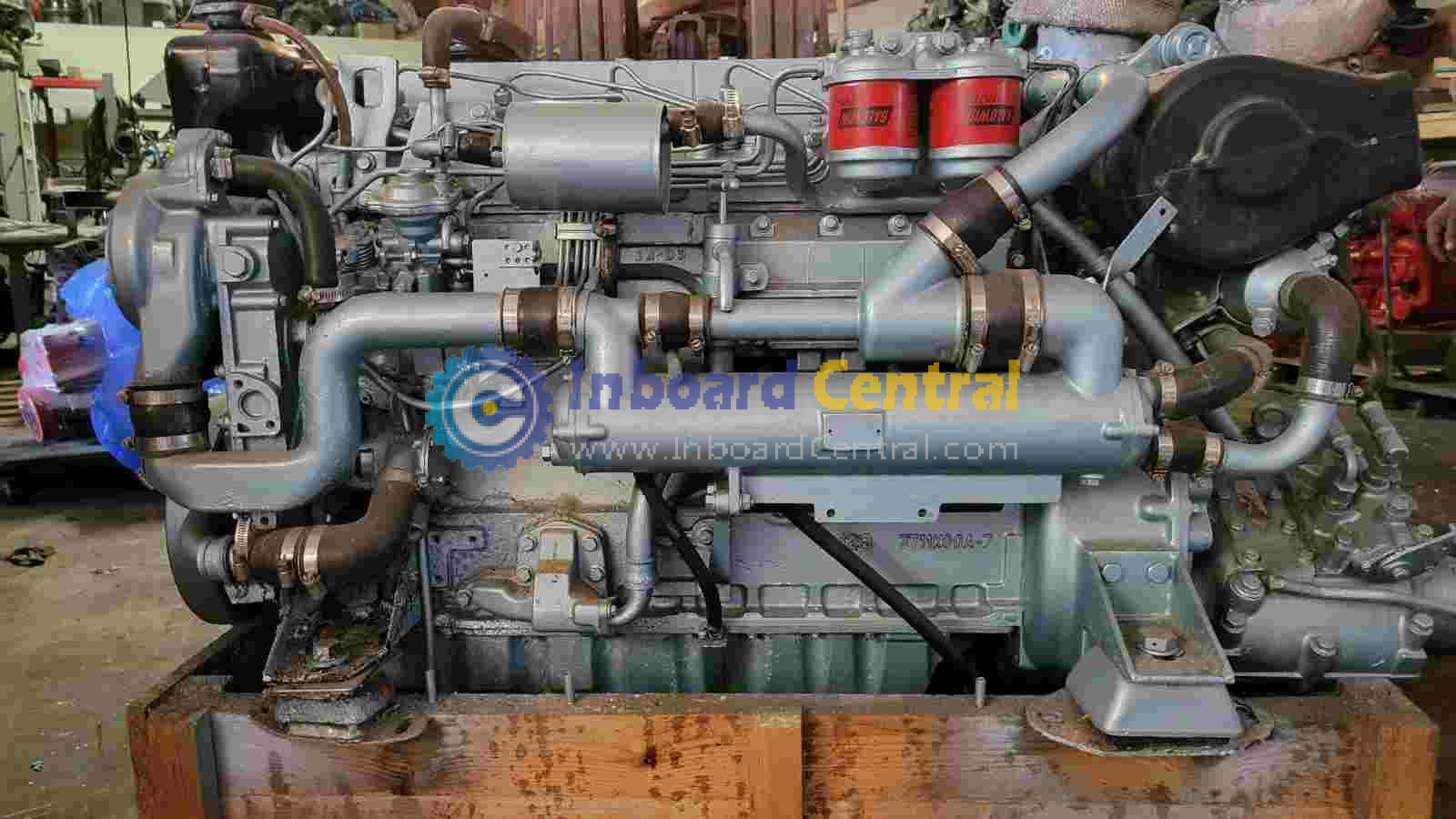

Perkins M215C Marine Diesel Engine w/ Transmission

FOR SALE Perkins M215C Marine Diesel Engine w/ Newage PRM1000 Marine Transmission. This is a well-maintained commercial-grade marine power package.

Perkins M215C Marine Diesel Engine w/ Newage PRM1000 Marine Transmission – LOW HOURS – USED RTO – 215 HP

ENGINE + TRANSMISSION PACKAGE OVERVIEW

• Perkins M215C Marine Diesel Engine
• Model : Perkins M215C
• Power : 215 HP @ 2600 RPM
• Configuration : 6-cyl inline, turbocharged diesel
• Cooling : Freshwater/heat exchanger marine cooling
• Fuel System : Mechanical direct injection
• Status : Running take-out — smooth, responsive, quiet
• Hours : Low hours

Newage PRM1000 Marine Transmission

• Brand: Newage (PRM Marine Division)
• Model: PRM1000 – Heavy-Duty Hydrostatic Marine Gearbox

Key Transmission Specifications

• Type: Hydraulic multi-disc marine gearbox
• Duty Rating: Designed for continuous commercial propulsion use
• Rotation: Forward (Ahead) and Reverse (Astern) via smooth hydraulic clutch actuation
• Gear Ratios Available:
  ✔ 1.53:1
  ✔ 2.03:1
  ✔ 2.86:1
  ✔ 4.00:1 (4.00:1 not available with down-angle output)
  (Confirm ratio for this unit if needed — most common commercial setup is 2.03:1/2.86:1.)
• Output : Straight shaft or down-angle configuration (optional)
• Housing : Rigid cast iron case with external oil pump and control valves for durable service life
• Cooling : Built-in lubrication system; option for external oil cooler recommended on continuous heavy loads
• Application : Workboats, fishing boats, trawlers, patrol vessels, commercial displacement hulls

The PRM1000 is a well-regarded, rugged marine gearbox suited for engines in the 180–280 HP class and ideal for commercial use where smooth shifting and durability matter.

INCLUDED

• Perkins M215C Marine Diesel Engine
• Newage PRM1000 Marine Transmission
• Heat exchanger
• Turbocharger
• Fuel injection pump & injectors
• Starter & alternator
• Wiring harness as removed
• Engine mounts & brackets

ENGINE SPECIFICATIONS – PERKINS M215C

• Horsepower : 215 HP @ 2600 RPM
• Displacement : ~6.0 Liters
• Cylinders : 6 inline
• Aspiration : Turbocharged
• Cooling : Freshwater heat exchanger
• Fuel Delivery : Mechanical injection
• Weight : ~1,300–1,450 lbs.
• Electrical : 12V or 24V
• Application : Commercial fishing, workboats, ferries, trawlers
