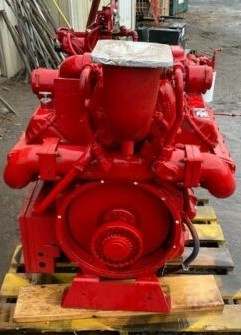

CAT 3208 Marine Engine

Engine Dimensions & Weight

• • Configuration : 4-Stroke Cycle, V8
  • Displacement : 10.4 Liters (636 cubic inches)
  • Bore & Stroke : 4.5 x 5.0 inches (114.3mm x 127mm)
  • Dry Weight : 1,600 to nearly 2,000 lbs (depending on configuration)
  • Rotation : Standard counter-clockwise (viewing flywheel)

Technical Specifications

• • • Aspiration : Naturally Aspirated (NA) or Turbocharged (T)
    • Max Rated Speed : 2,800 RPM
    • Cooling Capacity : ~12.5 gallons (NA) to ~14.8 gallons (Turbo)
    • Oil Capacity : 3.2 to 4 gallons
    • Block Design : Cast-iron deep-skirt, parent bore (cylinders are cast directly into the block)
    • Fuel System : Mechanical direct injection (using a sleeve metering fuel pump)
